Main Dimensions & Performance Data
| d | 360 mm | Shaft diameter |
| H | 901.7 mm | Housing height |
| B | 1,092.2 mm | Length base |
| ≈m | 790.157 kg | Weight |

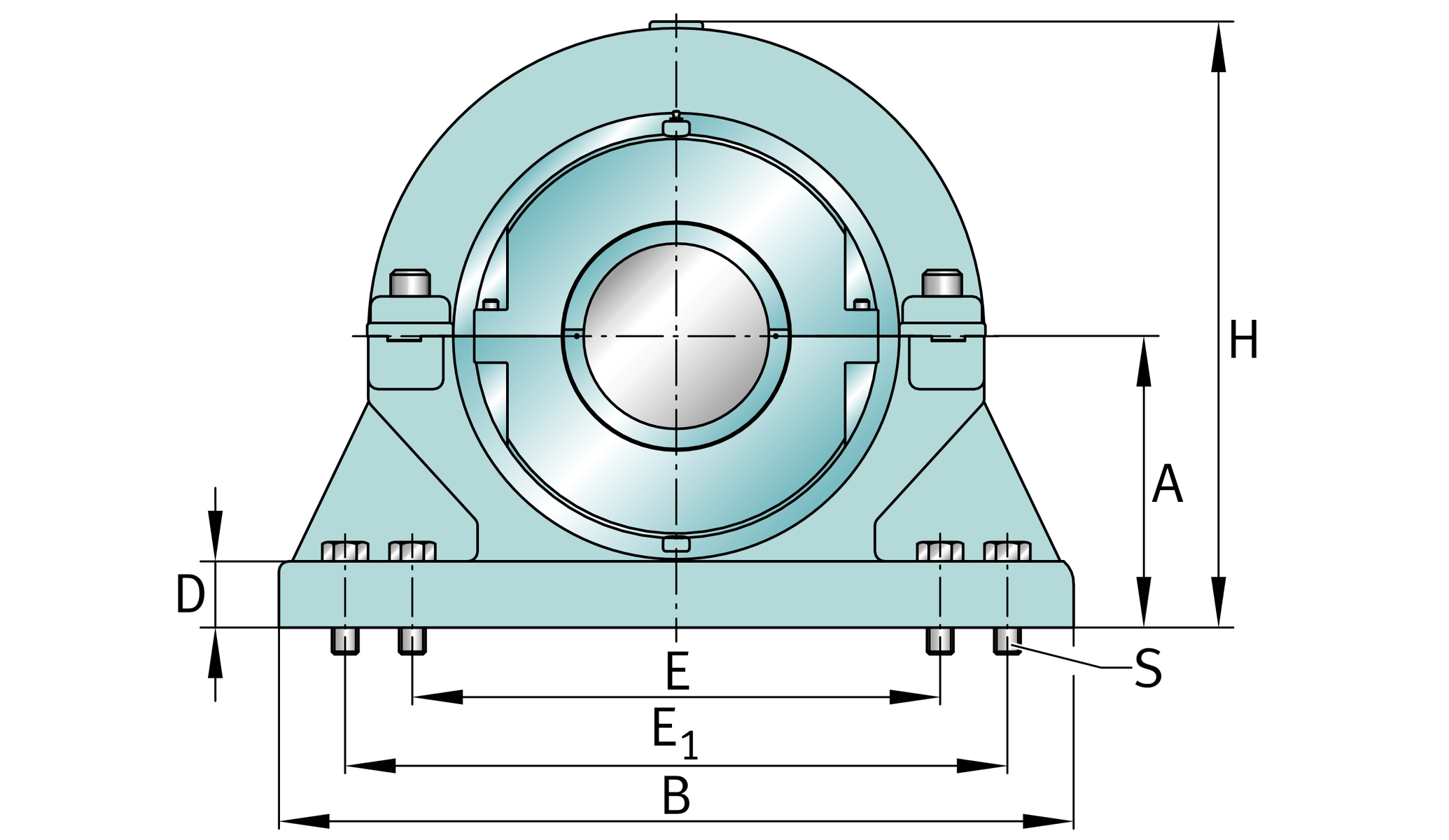

Dimensions
S2BCH-360MM-FL | Complete unit float | |
S2BCH-360MM-HD | Complete unit held | |
PH-30 | Housing designation | |
| A | 450.85 mm | Center height |
| C | 368.3 mm | Base width |
| D | 63.5 mm | Base height |
| Emin | 639.762 mm | Base hole distance 1 min |
| Emin | 679.45 mm | Base hole distance 1 max |
| E1, min | 842.962 mm | Base hole distance 3 min |
| E1, max | 882.65 mm | Base hole distance 3 max |
| F | 279.4 mm | Base hole distance 2 |
| s | 8 | # of mounting bolts |
| s | 31.75 mm | Mounting bolt diameter |
S2BC-360MM-FL | Cartridge float bearing | |
S2BC-360MM-HD | Cartridge held bearing | |
S2C-1400 | Cartridge | |
| G | 342.9 mm | Length through bore |
| L | 628.65 mm | Outside diameter cartridge |
7.212 kg | Grease capacity | |
362.784 kg | Cartridge weight | |
S2B-360MM-FL | Bearing float | |
S2B-360MM-HD | Bearing held | |
183.66 kg | Bearing weight | |
1400 Grp | Bearing group | |
| Cr | 1,600,599.456 N | Basic dynamic load rating, radial |
| C0r | 3,038,526.656 N | Basic static load rating, radial |
| Ca | 71,421.536 N | Basic dynamic load rating, axial |
737 1/min | Limiting speed | |
| D0 | 565.15 mm | Outside diameter bearing |
| C0 | 197.714 mm | Width inner ring |
| B0 | 115.9 mm | Width outer ring |
